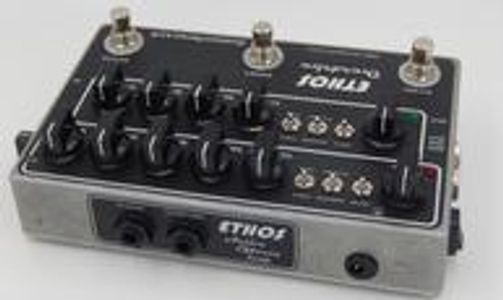

ETHOS OVERDRIVE PREAMP
Ethos Overdrive: inspired by one of the most sought after boutique guitar amps ever made.
Ten Key Features of this boutique guitar amp include:
Dual Independent Channels with EQ
- Overdrive with enhanced overdrive effects
- Clean
Preamp Boost (OD Channel) for increased gain
Speaker Simulation Output for versatile sound options
Guitar Amp Compensation Circuit with Hi-Cut for optimal tonal balance
Tone Stack Toggles:
- Brite, Modern/Classic, Jazz/Rock settings to suit your style
DI Interface for broadband systems (PA, Studio, or PC)
Feeds a Power amp/speaker combo for robust audio performance
Operates on +9V battery or Wall Adapter for convenience
Buffered Inactive Mode mitigates loading effects, preserving your signal integrity
Compact Size:
- Dimensions 7.5" x 4.75"
- Rugged die-cast Aluminum Chassis ensures durability.

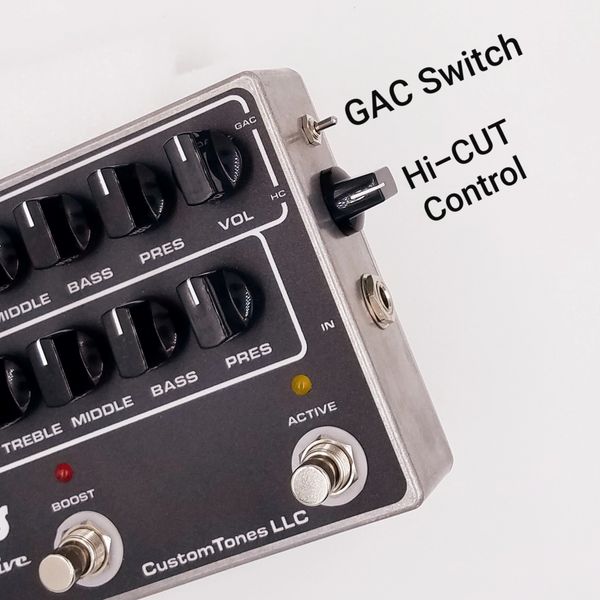

gAC switch AND hI-CUT control COME STANDARD
SEE MANUAL BELOW FOR MORE DETAILS
The Ethos OD Preamp, a highly regarded option for those seeking a boutique guitar amp experience, is shipped with a Power Adapter that has the following characteristics: a.) INPUT VOLTAGE: 120VAC @ 60Hz b.) OUTPUT VOLTAGE: 12 VDC (Unregulated) @ 500mA [The unregulated 12 VDC actually = 16VDC with the ETHOS load]
II. The Ethos guitar preamp will also operate with Power Adapters that generate a (5%) REGULATED +18VDC output.
III. DC Dunlop Brick using the +18VDC output. This adapter works with many input power voltages around the world and is ideal for those using overdrive effects.
IV. Voodoo Lab, Pedal Power 2 and 2+. Use the L6 outputs (channels 5 OR 6) which provide between 16 and +17VDC. Note: You must set the channel dip switch to the NON-normal position.

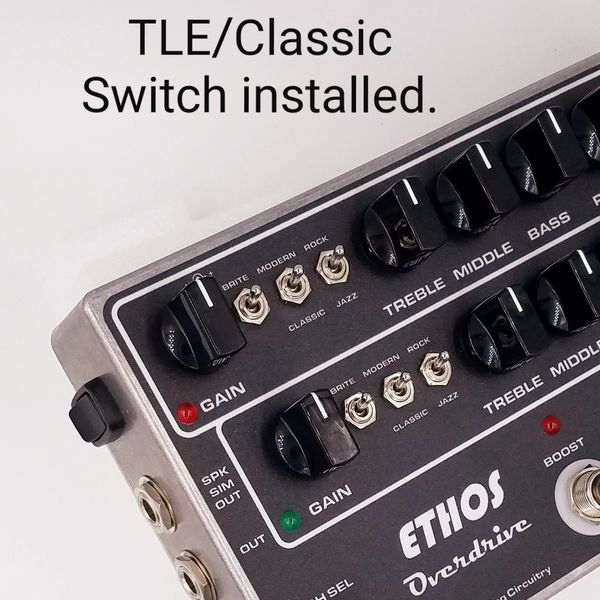

TLE/CLASSIC SWITCH MOD +$
THIS MOD OFFERS BOTH VERSIONS: TLE & CLASSIC. Available exclusively on the boutique guitar amp, the Ethos OD Preamp & Ethos OD Amp. The TLE/Classic Switch allows you to easily toggle between the Classic Mode and the TLE (Tighter Low End) Mode, enhancing your overdrive effects. [INFO SHEET AT BOTTOM OF PAGE]

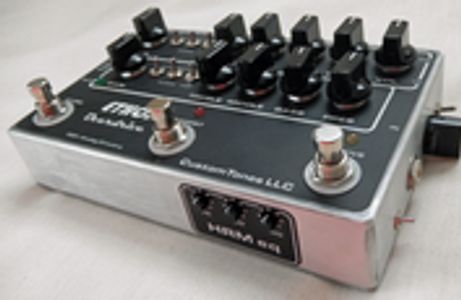

HRM EQ MOD & HRM BYPASS SWITCH MOD +$
The HRM eq is a finely tuned, three band post EQ, inspired by the later models of the most sought after boutique guitar amp. Designed to work with both the Ethos Clean and Fusion Channels, the HRM eq significantly expands the tonal palette of the Ethos, making it an excellent choice for those seeking a high-quality guitar preamp. The HRM can be adjusted to achieve an almost flat response with a subtle emphasis on the high and low ends, perfect for enhancing your overdrive effects.
The HRM toggle Bypass Switch instantly returns you to the base tone, allowing you to switch back and forth on the fly as desired.
HRM EQ SETTING SHEET PDF BELOW.
FX LOOP MOD +$
MID SHIFT BOOST MOD +$
MID SHIFT BOOST MOD +$
The FX Loop mod for our boutique guitar amp was developed after great customer demand. By locating the FX Loop in the preamp section, your effects can be effectively heard through the normal and speaker simulation outputs, in addition to the speaker out. This configuration proves to be incredibly useful when running a feed from the speaker simulation to the PA/board while still listening via the amp's local speaker. The FX Loop is integrated within the Ethos guitar preamp, so when you bypass the unit, the overdrive effects will also be bypassed.
Loop Type: Serial
Input Impedance: 1 Megohm
Output Impedance: 1 kohm
MID SHIFT BOOST MOD +$
MID SHIFT BOOST MOD +$
MID SHIFT BOOST MOD +$

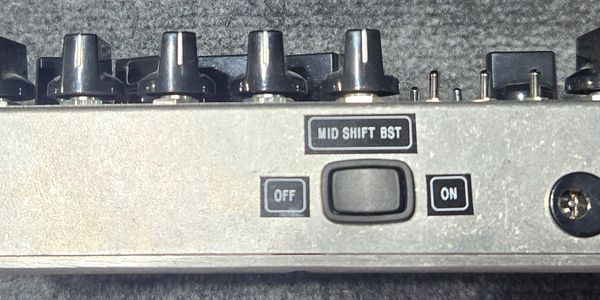

The Mid Shift Boost Mod is a rocker switch (located on the side of the boutique guitar amp opposite your feet) that selects a circuit to lower the corner frequency of the treble control, adding more mids to the tone stack. This modification results in a richer, thicker tone response, enhancing the overall sound quality of the guitar preamp. It is based on the mid shift circuit used in the renowned Dxmble S/N 102 Overdrive Special, known for its exceptional overdrive effects.
